Key Technical Specifications:
Pressure Range: 95% vacuum to 1000 psi / 70 bar (pneumatic operation)
Media Compatibility: Clean, dry, non-corrosive gases
Output Ports:
Adjustment Mechanism:
Priming Mechanism: Dual-piston system for fast pressure generation and priming
Material Construction:
Weight: Approx. 3.5 lbs (1.6 kg) – lightweight and portable
Warranty: 1 year
Key Features:
High-Pressure Capability: Generates pressures from 95% vacuum up to 1000 psi (70 bar) with ease, ideal for a wide range of calibration and testing applications.
Compact & Portable Design: Lightweight and rugged construction makes it easy to transport for field or lab use.
Smooth and Efficient Operation: Dual-piston system provides quick priming and stable pressure control with minimal effort.
Durable Stainless-Steel Fittings: Ensures long service life and compatibility with a wide range of test instruments.
Leak-Free Performance: Designed for low leakage to ensure precise and stable pressure readings.

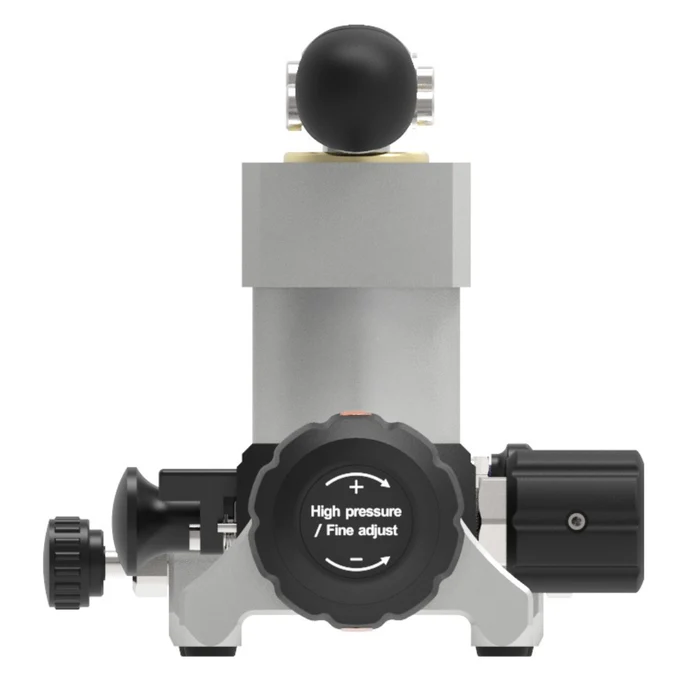

Fine Adjustment Knob: Built-in fine control valve for accurate pressure adjustment and control.
Easy to Maintain: Modular design with user-replaceable seals and components for minimal downtime.
Ideal for Calibration Tasks: Perfect for calibrating pressure transmitters, gauges, sensors, and other instruments in both field and lab environments.
Wide Compatibility: Can be paired with pressure calibrators, manometers, or digital pressure gauges for complete testing solutions.
