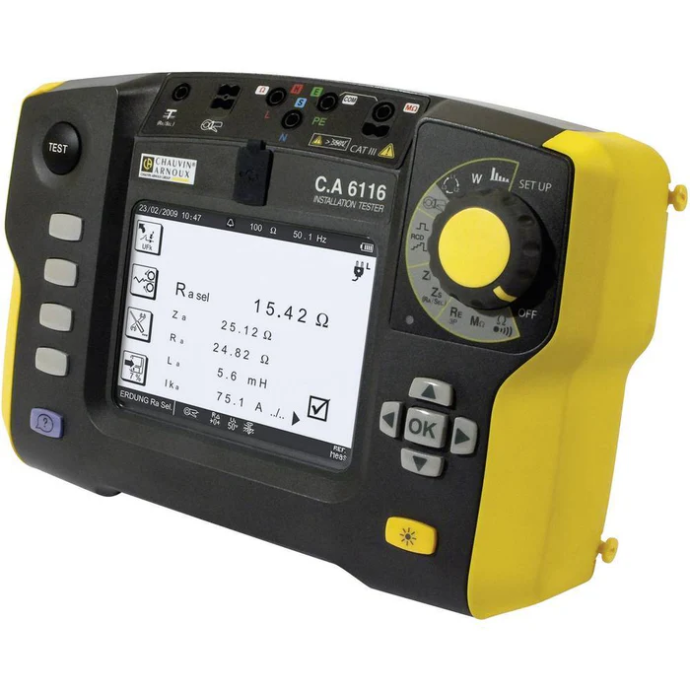

Technical Specifications:
Voltage Measurement: Up to 550V AC/DC
Insulation Resistance Testing: 10kΩ to 2GΩ with test voltages of 50V, 100V, 250V, 500V, and 1,000V
Continuity Test: 200mA and 2A with automatic polarity reversal for low-resistance circuits
Loop & Line Impedance Measurement: With and without RCD tripping, ensuring circuit safety
Earth Resistance Measurement: 2-pole, 3-pole, and selective methods for accurate grounding verification
RCD Testing: Compatible with Type AC, A, B, and F RCDs, with multiple trip current settings
Phase Rotation Detection: Ensures correct 3-phase system installation
Frequency Measurement: 15Hz to 500Hz range
Touch Voltage Measurement: Enhances safety by detecting dangerous voltage levels
Data Storage & Transfer: Internal memory with USB connectivity for efficient data management
Display: Large backlit LCD for easy readability in low-light conditions
Safety Compliance: IEC 61010 -1 – 600 V CAT III – 300 V CAT IV – IEC 61557
Power Supply: Operates on a rechargeable NiMH battery or mains power
Portability: Lightweight and ergonomic design for convenient on-site testing
Key Features:
-
Comprehensive Electrical Testing: Measures earth resistance, loop impedance, insulation resistance, continuity, RCD tripping time & current, voltage, current, and frequency. Covers all essential electrical installation tests in one device.
-
Versatile Applications: Ideal for testing electrical installations in residential, commercial, and industrial buildings. Suitable for TT, TN, and IT earthing systems.
-
Advanced RCD Testing: Tests various RCD types (Type AC, A, and B) including selective RCD testing to avoid nuisance tripping. Provides accurate RCD tripping time and current measurements.
-
High Accuracy & Reliability: Delivers precise and dependable measurements for accurate diagnostics and compliance with safety regulations. Meets IEC 61557 standards.
-
User-Friendly Operation: Large, backlit digital display with intuitive icons and simple navigation for easy use, even in poorly lit areas. Minimizes training requirements.
-
Fast & Efficient Testing: Measurement algorithms enable quick and efficient testing, saving valuable time on site.
-
Data Logging & Transfer: Stores test results internally and allows for easy data transfer to a PC via USB for professional report generation using Data View software.
-
Rugged & Durable Design: Built to withstand demanding field conditions with a robust, shockproof housing. Ensures long-lasting performance.
-
Affordable & Value-Packed: Offers a comprehensive range of testing capabilities at a competitive price point, providing excellent value for investment.
