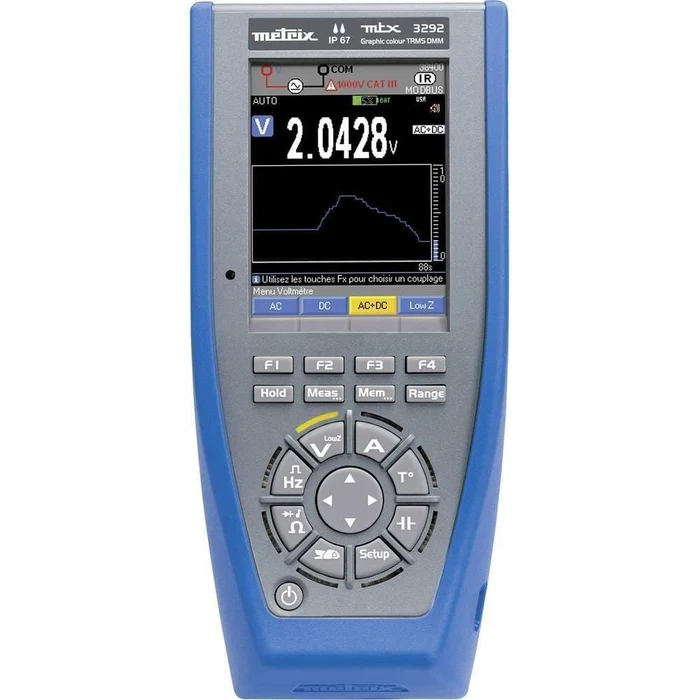

Chauvin Arnoux MTX 3292 Color Graphic Digital Multimeter

Key Technical Specifications:

Display:

• Large, high-resolution color graphic display for intuitive and clear data visualization.
• 100,000-count display capability for precise measurements.

Measurement Functions:

• AC/DC Voltage: Up to 1,000V.
• AC/DC Current: Up to 10A.
• Resistance: Up to 100 MΩ.
• Capacitance: From 1 pF to 60 mF.
• Frequency: From 0.5 Hz to 1 MHz.
• Temperature: -200°C to +1,200°C (-328°F to +2,192°F) with compatible probes.

True RMS Accuracy:

• Ensures accurate measurements for non-linear and distorted signals.

Safety Ratings:

• Complies with IEC 61010 standards.
• CAT IV 600V / CAT III 1,000V safety rating for maximum protection in industrial and high-voltage environments.

Advanced Data Logging:

• Built-in memory for up to 10,000 measurements with timestamps.
• Data can be stored and retrieved for comprehensive analysis.

Connectivity Options:

• Equipped with USB and Bluetooth interfaces for seamless data transfer.
• Compatible with Chauvin Arnoux DataView software for advanced analysis and reporting.

Power Supply:

• Operates on a rechargeable lithium-ion battery for extended usage.
• Features an auto power-off function for energy efficiency.

Durable Design:

• Robust, ergonomic design with IP67 rating for protection against dust, water, and tough working conditions.
• Drop-resistant for reliable performance in field environments.

Additional Features:

• Automatic and manual ranging modes.
• Continuity buzzer and diode testing.
• Harmonics measurement up to the 25th order for detailed signal analysis.

Included Accessories:

• Supplied with test leads, alligator clips, a magnetic multi-position stand, and a carrying case.
