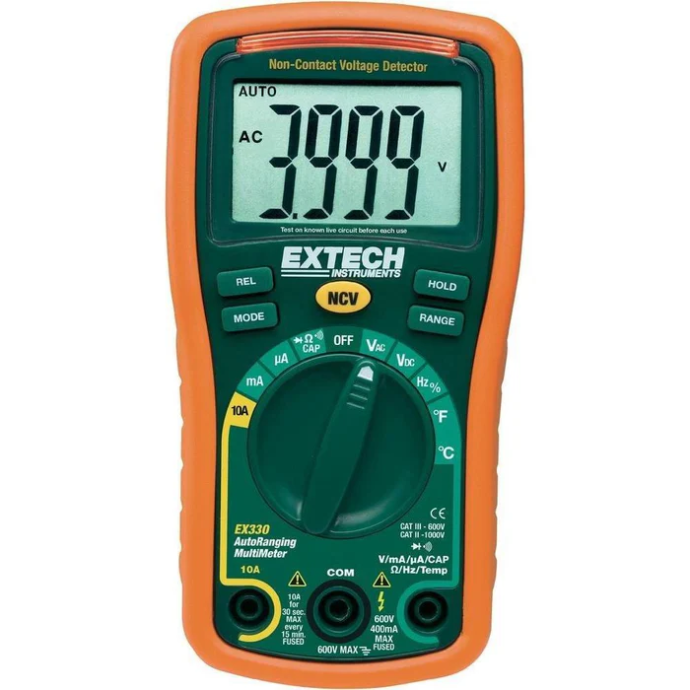

Extech EX330: 12 Function Mini MultiMeter + Non-Contact Voltage Detector

Key Technical Specifications:

• DC Voltage:
  • Resolution: 0.1mV
  • Range: 600.0mV to 600.0V
  • Accuracy: ±0.5% ±2 digits
• AC Voltage:
  • Resolution: 0.1V
  • Range: 6.00V to 600.0V
  • Accuracy: ±1.2% ±5 digits
• DC Current:
  • Resolution: 0.1µA
  • Range: 60.00µA to 10.00A
  • Accuracy: ±1.0% ±3 digits
• AC Current:
  • Resolution: 0.1mA
  • Range: 600.0µA to 10.00A
  • Accuracy: ±1.5% ±5 digits
• Resistance:
  • Resolution: 0.1Ω
  • Range: 60.00Ω to 40.00MΩ
  • Accuracy: ±1.0% ±3 digits
• Capacitance:
  • Resolution: 1nF
  • Range: 20.00nF to 20.00µF
  • Accuracy: ±3.5% ±5 digits
• Frequency:
  • Resolution: 0.01Hz
  • Range: 0.001Hz to 40MHz
  • Accuracy: ±0.5% ±5 digits
• Duty Cycle:
  • Resolution: 0.1%
  • Range: 0.1% to 99.9%
  • Accuracy: ±0.5% ±5 digits
• Temperature:
  • Resolution: 0.1°C
  • Range: -20.0°C to +70.0°C
  • Accuracy: ±2.0°C
• Diode Test:
  • Voltage: Approx. 2.0V
• Continuity Test:
  • Audible and visual indication
• Non-Contact Voltage Detection:
  • Detection range: 90V to 1000V AC
• Safety:
  • CAT III 600V, CAT IV 300V
  • IEC 61010-1

Key Features:

• 12 Essential Functions: Measures AC/DC voltage, AC/DC current, resistance, continuity, diode test, capacitance, frequency, duty cycle, and temperature.
• Non-Contact Voltage Detection: Quickly and safely detects the presence of AC voltage without physical contact, improving safety.
• Autoranging: Automatically selects the appropriate measurement range for optimal readings.
• Large, Backlit LCD Display: Ensures easy readability in various lighting conditions.
• Data Hold Function: Freezes readings on the display for easy recording.
• Low Battery Indicator: Alerts the user when the battery needs replacement.
• Rugged and Durable: Designed to withstand drops and other impacts, making it suitable for field use.
• Affordable: Offers excellent value for its price and comprehensive feature set.
