The RHT20 is a Humidity Temperature Datalogger which records up to 16,000 Humidity and 16,000 Temperature readings with a user programmable sample rate. USB interface for easy setup and data download. Selectable data sampling rates of 2s, 5s, 10s, 30s, 1m, 5m, 10m, 30m, 1hr, 2hr, 3hr, 6hr, 12hr, and 24hr. User-programmable alarm thresholds for RH and Temperature. LCD displays current temperature and humidity readings plus Min/Max and Alarm status. Long battery life. Place or mount the datalogger in monitoring location (storage bin, truck, cargo hold, freezer, temperature-controlled room, etc.). Datalogger records temperature and humidity at sample rate set by user. Connect the datalogger to your PC via the USB interface to retrieve readings. Datalogger displays the current Humidity and Temperature plus Min/Max and alarm status so it can viewed anytime during the recording process. Complete with battery, mounting bracket, and software.
-
Measurement Range:
- Humidity: 0 to 100% RH
- Temperature: -40°C to 70°C (-40°F to 158°F)
-
Accuracy:
- Humidity: ±3% RH
- Temperature: ±1°C (±1.8°F)
-
Resolution:
- Humidity: 0.1% RH
- Temperature: 0.1°C (0.1°F)
-
Data Storage: 16,000 readings for humidity and 16,000 readings for temperature
-
Logging Interval: User-selectable from 1 second to 24 hours
-
Power Supply: 3.6V lithium battery (included)
-
Dimensions: 130 mm × 32 mm × 25 mm (5.1 in × 1.3 in × 1.0 in)
-
Weight: 80 g (2.8 oz)
Applications:
-
Environmental Monitoring: Ideal for tracking humidity and temperature in various environments.
-
Storage Facilities: Ensures optimal conditions for sensitive goods and materials.
-
HVAC Systems: Monitors and verifies the performance of heating, ventilation, and air conditioning systems.
-
Research and Development: Provides accurate data for scientific studies and experiments.
Additional Features:
-
Alarm Indication: Visual and audible alarms for high and low humidity/temperature thresholds.
-
Data Analysis Software: Includes software for data analysis and report generation.
-
Battery Life: Long battery life for extended monitoring periods.
Features :
- USB interface for easy setup and data download
- Selectable data sampling rate: 1 second to 24 hours
- User-programmable alarm thresholds for RH and Temperature
- LCD displays current readings, Min/Max, and alarm status

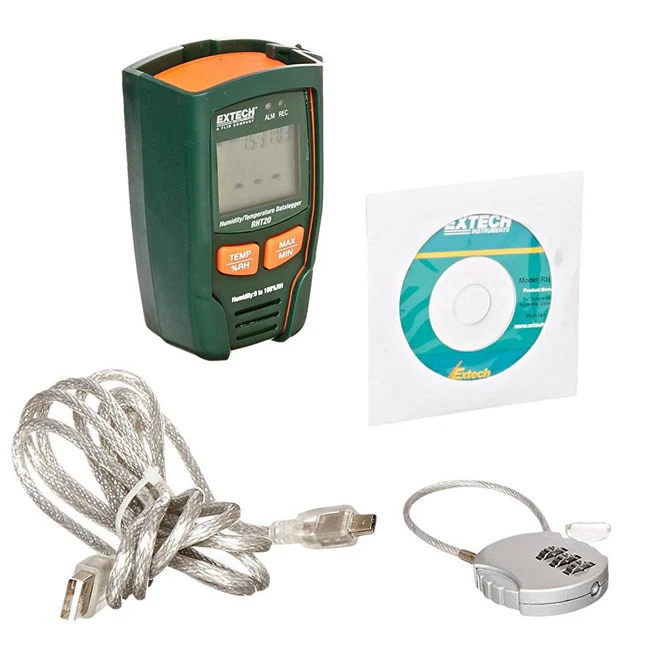

- Complete with 3.6V Lithium battery, mounting bracket with combination lock
- Includes Windows® 2000/XP/Vista/7 compatible analysis software
