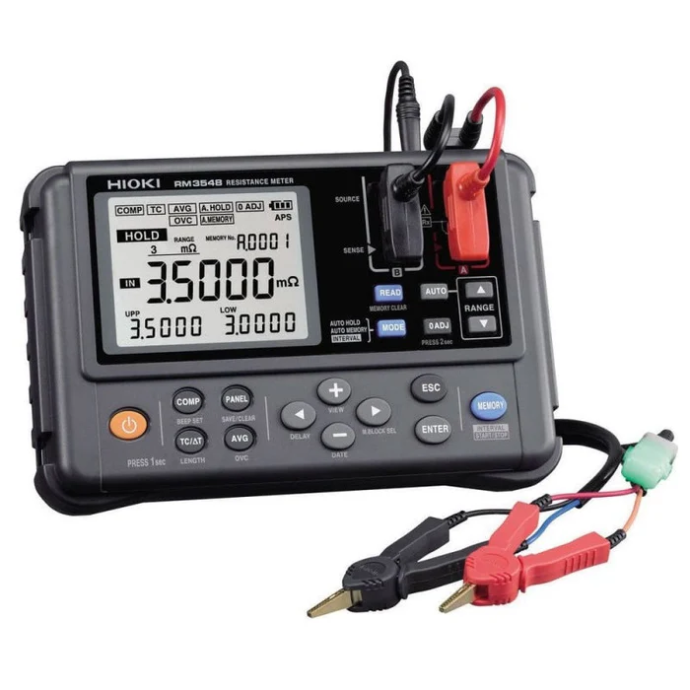

Technical Specifications:
-
Measurement Range: 0.0 µΩ to 3.5 MΩ
-
Accuracy: ±0.02% (maximum) for high-precision measurements
-
Test Current: 1 µA to 1 A, auto-ranging function
-
Measurement Mode: 4-terminal measurement for accurate low-resistance testing
-
Temperature Compensation: Built-in function for temperature corrections (thermistor support)
-
Data Logging: Up to 1,000 measurement records stored in memory
-
Power Supply: Battery-operated for field use (AA alkaline or NiMH batteries)
-
Display: Large LCD screen with backlight for easy reading
-
Interface: USB connectivity for data transfer and analysis
-
Auto Hold & Comparator Function: Helps in quick pass/fail judgments
-
Protection Features: Overvoltage protection and noise-resistant design
Key Specifications:
High-Precision DC Resistance Measurement: Accurately measures DC resistance from micro-ohms to mega-ohms, crucial for a wide range of applications.
Portable and Lightweight: Compact and battery-powered design for easy portability and on-site measurements.
Fast and Stable Readings: Provides quick and reliable measurements, improving testing efficiency.
Versatile Measurement Functions: Offers various measurement modes, including 4-terminal measurement for accurate low resistance readings, temperature compensation, and comparator function.
Data Logging: Stores measurement data for later analysis and report generation.
PC Connectivity: Enables data transfer to a PC for further analysis and report creation.
Easy-to-Use Interface: Intuitive operation with a clear display and straightforward controls.
