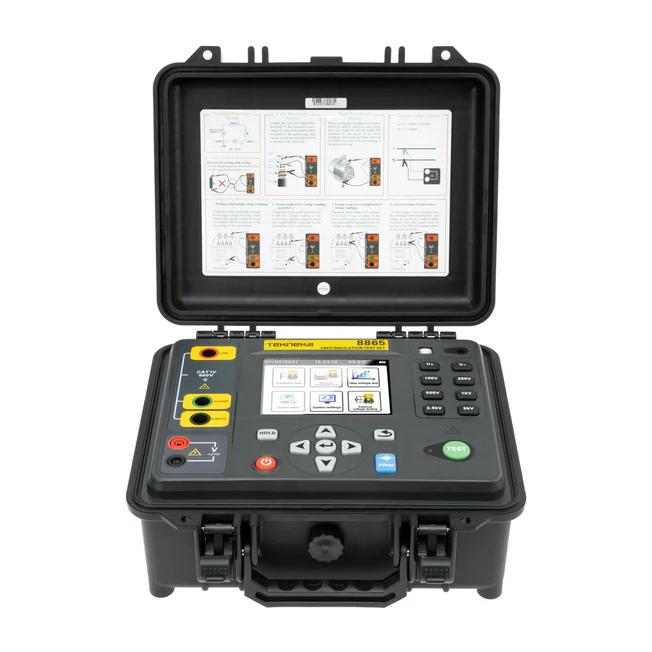

The Tekneka 8865 Insulation Tester 10kV is a versatile and reliable testing solution designed for precision. This instrument ensures accuracy through various testing modes, including IR, PI, DAR, DD, SV, and Voltage measurement. Its user-friendly 5.6" LCD screen simplifies operation, while its robust construction is suitable for elevations up to 2000 meters. With a 600V CAT IV rating, it prioritizes electrical safety. It enables thorough analysis and has a data logging capacity of 1000 readings. Additionally, it provides an LED & along with alert beep sounds of the test result. The Tekneka 8865 is an extremely compact instrument that is highly effective for accurate and timely measurements in electrical testing.
-
Test Voltage Range: 100V to 10,000V in increments of 10V (100V to 1000V) and 0.1/0.2V (1000V to 10,000V)
-
Insulation Resistance Range: 10KΩ to 20TΩ
-
Accuracy: ±(2% + 2 digits)
-
Testing Modes: IR (Insulation Resistance), PI (Polarization Index), DAR (Dielectric Absorption Ratio), DDT (Dielectric Discharge Test), STEP, RAMP, Voltage Measurement
-
Display: 5.6-inch color LCD with High/Medium/Low brightness adjustment
-
Data Storage: Up to 1000 readings
-
Connectivity: Bluetooth and USB 2.0
-
Power Supply: Rechargeable Li-ion battery and mains power
-
Safety Rating: 600V CAT IV
-
Operating Altitude: Up to 2000 meters
-
Auditory Readout: LED and audible beep sound for test result alerts
• It can measure IR, PI, DAR, DD, SV, and Voltage
• Insulation resistance measures from 10KΩ to20TΩ
• This device can short circuit currents of ≤5mA
• Selectable noise filter10/20/30/40s to improve stability of the test process
• Shows real time graphical trend of the insulation resistance measurement
• It runs on a rechargeable Li-ion battery as well as mains power.
• Can store up-to 1000 readings & view the recorded values in the device
• 5.6-inch colour LCD with High/Medium/Low brightness adjustment
• Alerts user through LED and audible beep sound
• Test voltage can be set in 10V increments from 100V to 1000V and in 0.1/0.2V
increments from 1000V to 10kV.
• Measures AC/DC voltages ranging from 0 to 1000V
• Auto sleep mode reduces power consumption
• Simple to quantify measurement of insulation leakage current
